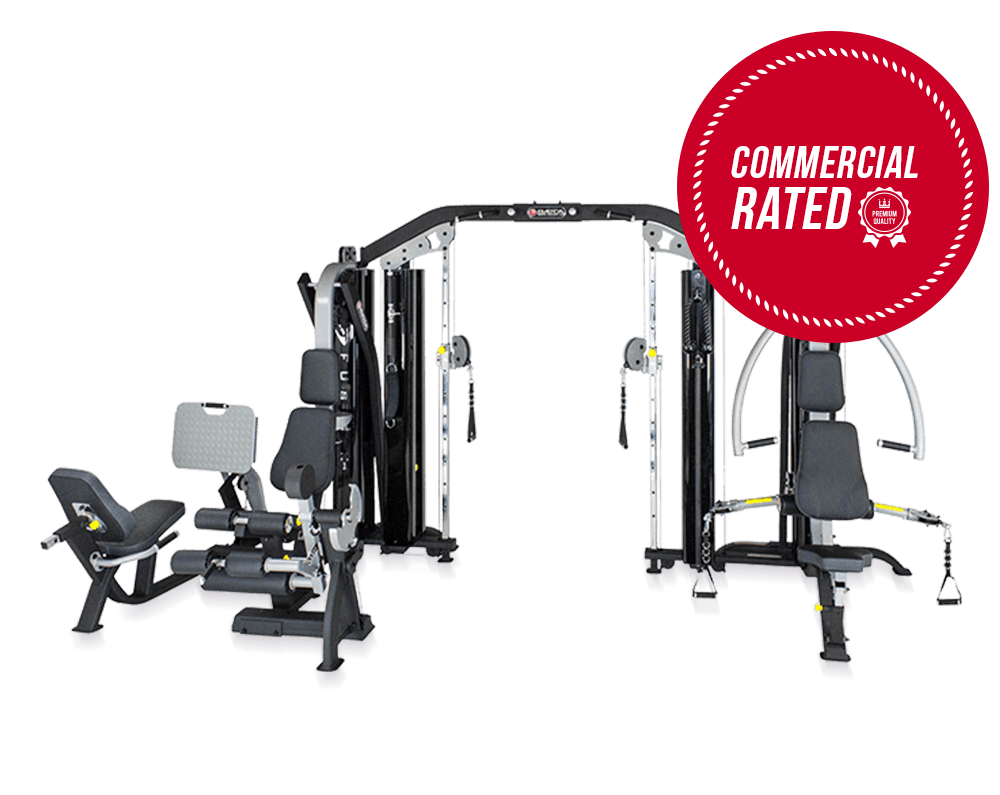

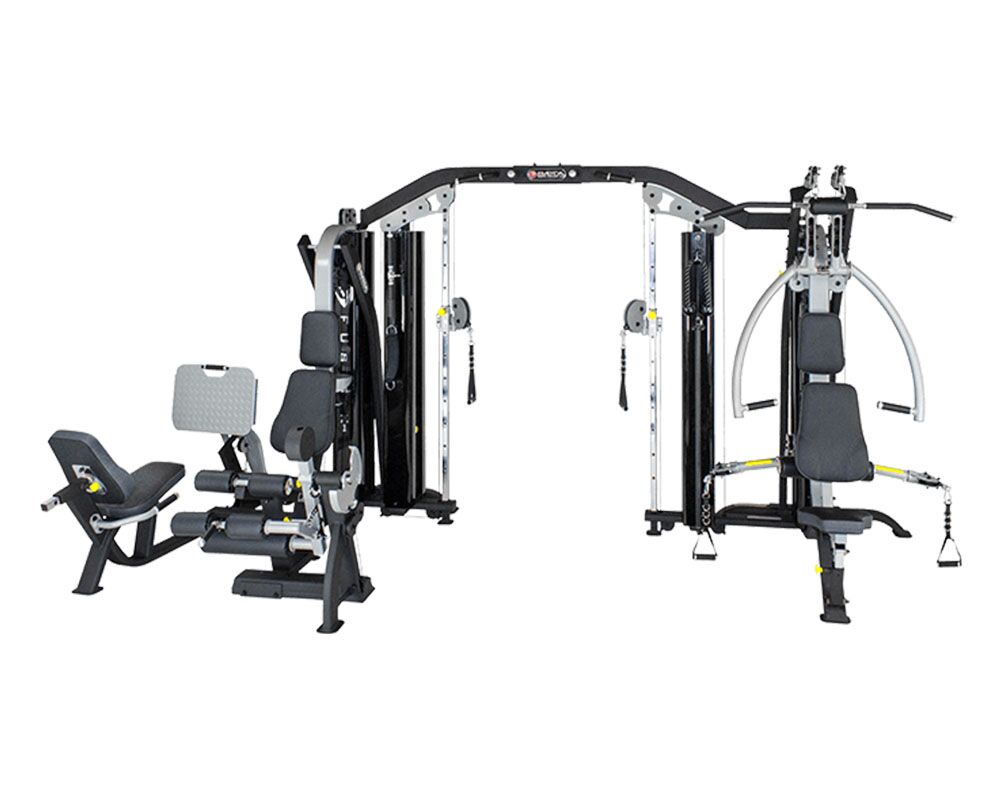

Batca Fusion 4 Modular Gym
Was | Now $13,995.00
Save : $600
About
The Batca Fusion 4 Modular Gym sets the new standard for dynamic strength training, offering the perfect balance of traditional and functional training.
The Batca Fusion System is an advanced fitness system designed to provide a limitless exercise experience with modern styling and unrivaled versatility. The system is made of high-quality materials and features a carbon edition with elegant architecture and modern styling, making it not only the most attractive choice but also the most efficient fitness system on the market.
The Fusion 4 is the central unit of the Batca Fusion System, and it offers unparalleled versatility and adaptability, allowing users to perform all exercises from the front to the back of the gym. The system also features a modular design, making it easy to place and adjust the units for optimal use.
The Batca Fusion 4 Modular Gym comes fully optioned with the following:
- FZ-1 Upper Body unit
- FZ-2 Cable Arms
- FZ-3 Lower Body unit
- FZ-4 Leg Press/Calf Raise
- FZ-5 Functional Trainer
The Batca Fusion System includes several units, such as the FZ-1 Upper Body Unit, which features dual swiveling high pulleys and multi-press arms, allowing users to perform various exercises, including chest press, incline/decline press, and chest-supported mid-row. The FZ-3 Lower Body Unit offers seated leg curl/leg extension with patented knee alignment pads, contoured and telescoping back pad, eight starting point adjustments, and a counterbalanced exercise arm. The FZ-4 Leg Press/Calf Raise Unit has a walkthrough frame design, a large footplate, and a four-bar linkage with a 2:1 weight ratio.
The Batca Fusion System also includes the FZ-5 Functional Trainer, which offers adjustable dual pulleys for limitless free cable exercises and adjustable dual high/low swivel pulleys for bar exercises. The FZ-5 also features chin-up bars with wide and neutral grips and optional FZ-2 cable arms, providing additional exercise options.
The total weight of the complete Batca Fusion System is 2,051lbs, with the FZ-5 requiring support from the FZ-1 and FZ-3 units. Optional accessories, such as the FZ-4 Leg Press and the FZ-6 F.I.D. Bench, are available for users to customize their workout experience.
ABOUT BATCA FITNESS
To ensure that quality, we have made many changes since we began manufacturing fitness equipment in 1989. Today, through a commitment to technological advances, proprietary manufacturing techniques, and global sourcing, we are able to deliver fitness systems that are unsurpassed in design, performance, and reliability.
We will continue to embrace change when it improves our products. But one thing never changes: our passion. We remain as passionate today as we were in 1989 about pushing the limits of what our fitness equipment can do and the results it can provide to our customers.
As our company and product line continue to grow, you can always count on Batca brand integrity. We make sure that every piece of fitness equipment that carries the Batca label blends exceptional mechanics, unmatched quality, and absolute performance.
| Warranty | |
| Commercial Warranty | |
| Frame: | 10 Years |
| Moving Parts: | 3 Years |
| Cables, Belts, and Other Parts: | 1 Year |
| Upholstery & Paint: | 6 Months |
| Specifications | |
| Frame: | 1-3/4" x 4" flat oval tube with 3/8" and 1/4" thick steel plate |
| Mounting plates with rubber feet protect floor and prevent the machine from sliding | |
| Frame tubes are bent with the use of an inside mandrel or cut and mig welded to ensure maximum structural integrity | |
| Finish: | Abrasive blasted and/or chemically treated frames are electrostatically powder coated ensuring maximum adhesion and durability |
| Pivot Points: | Sealed bearings and oil impregnated bronze bushings operate on solid shafts to ensure a smooth movement and tight fit |
| Cams: | Laser cut from 3/8” steel plate and offer starting point adjustment on applicable machines |
| Weight Stack: | Precision machined solid steel weight plates with individual bushings travel on solid, chromed, guide rods to ensure ultra smooth operation |
| Heavy rubber suspension bumpers are used to absorb and reduce shock | |
| Foot Platforms: | 3/16” thick powder coated steel diamond plate to avoid slipping |
| Pulleys: | Glass reinforced nylon operating on precision steel ball bearings |
| Cables: | Nylon coated, lubricated, mil. spec. cable |
| 2000 lb. tensile strength | |
| Pivoting cable ends with oil-impregnated bronze bushings promote long cable life | |
| Upholstery: | Contoured pads with lumbar support make a comfortable and well supported workout |
| Pads are double stitched and handcrafted from the finest materials available | |
| Seat adjustments: | Adjustable seats are gas assisted |
| All telescoping pad adjustments use nylon sleeves to make Batca seat adjustments smooth and effortless | |
| Shroud: | Formed and powder coated steel weight stack guard is standard |
| Handgrips: | Ergonomically molded handgrips provide a comfortable, and non-absorbing grip. |
| Height: | 7' 2" |
| Total Weight of Complete System: | 2,166 lbs. |
FEATURES

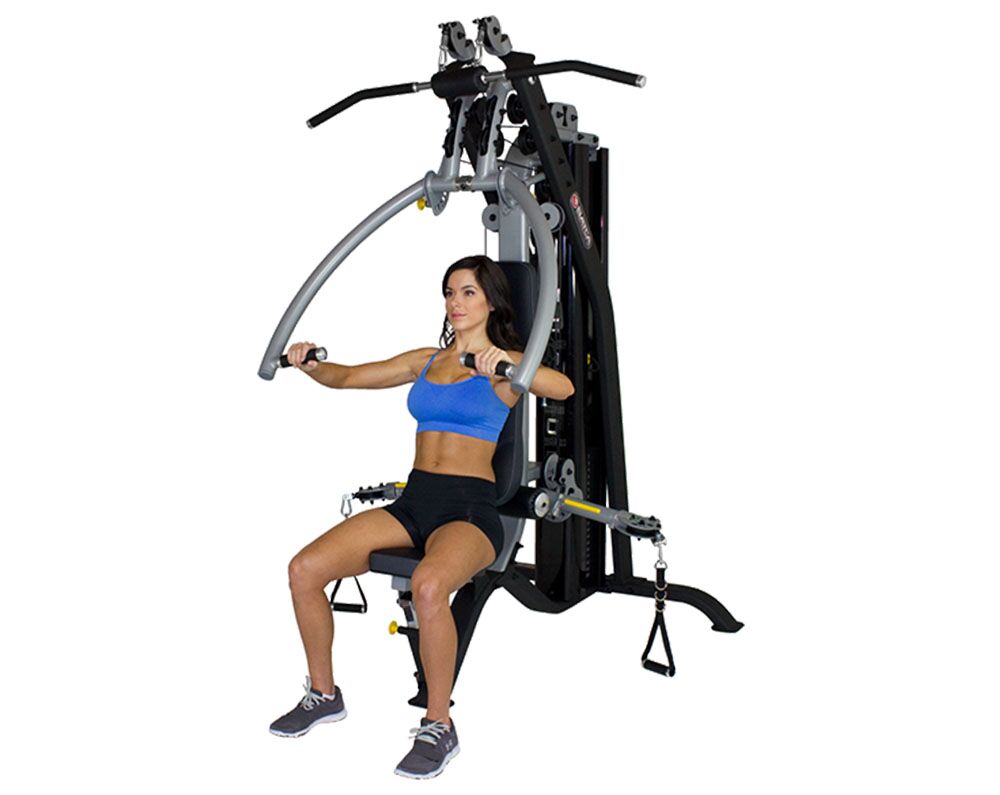

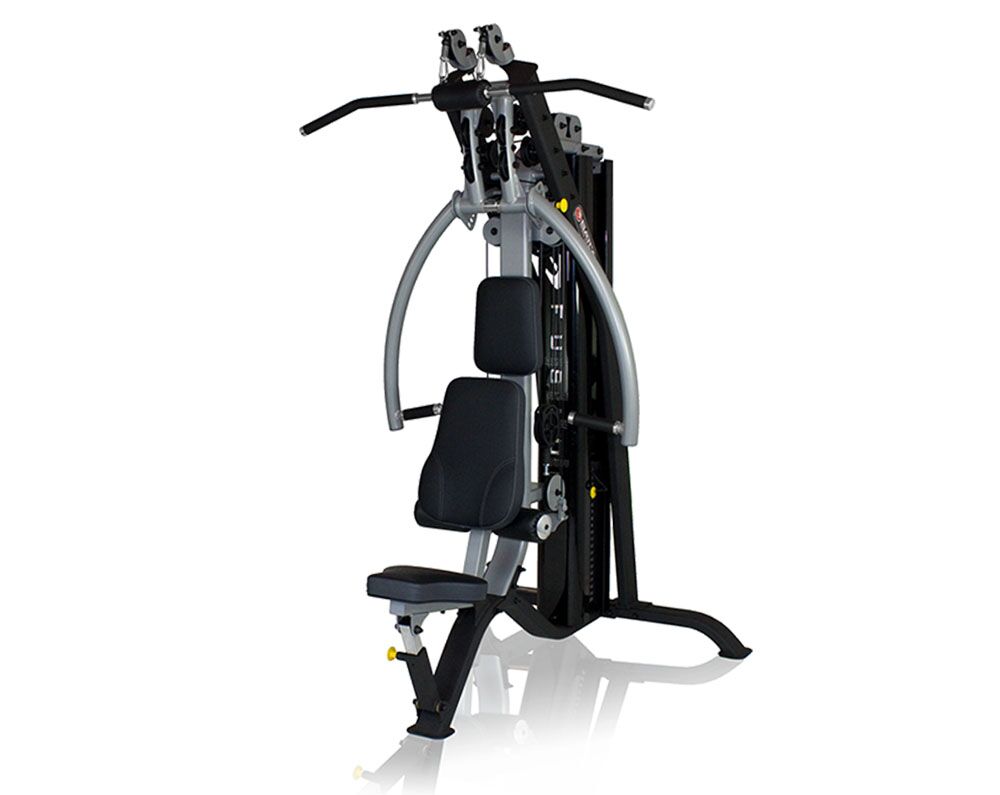

FUSION UPPER BODY KEY FEATURES:
- Dual Swiveling High Pulleys for iso-lateral lat pull-downs, straight and side ab crunches
- Fully Enclosed 200 lb. Weight Stack
- Iso-Lateral or Dependent Multi-Press & Mid Row Exercise Stations
- Multi-Angle Seat provides ideal seat angle for chest press, incline press, and decline press
- Height: 6′ 11″
- Weight: 560 lbs.
FUSION CABLE ARMS KEY FEATURES:
- Add a whole new dimension to the FZ-1 Upper Body Unit and allows a variety of free cable exercises: Chest Press, Shoulder Press, Pec Fly, Bicep Curl, Tricep Extension, and more
- User defined free cable exercises via independent rotating functional arm with single touch adjustment and swiveling pulleys
- Weight: 42 lbs.

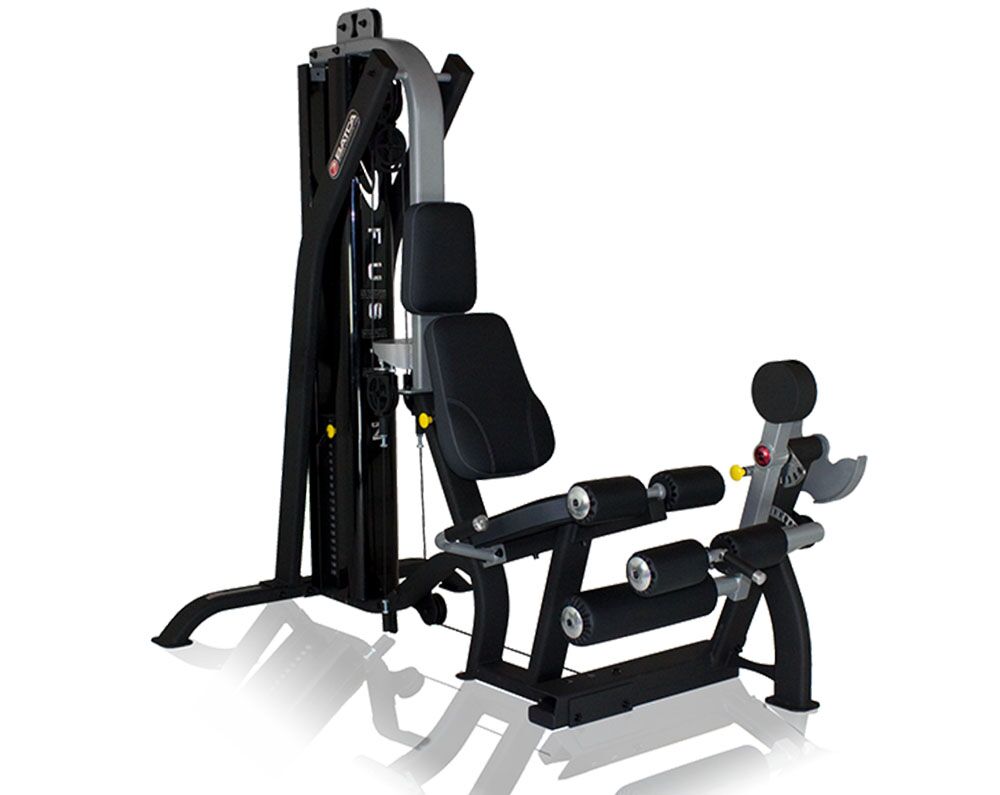

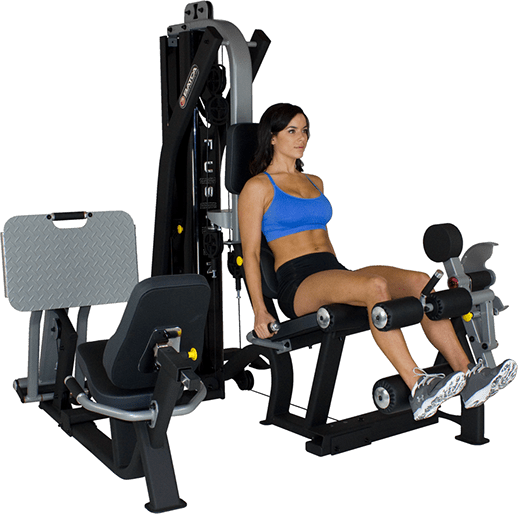

FUSION LOWER BODY KEY FEATURES:
- Fully Enclosed 200 lb. Weight Stack
- Leg Extension/Seated Leg Curl feature 8 starting point adjustments and patented flip support that allows full muscle contraction
- Height: 6′ 3″
- Weight: 642 lbs.
FUSION LEG PRESS/ CALF RAISE KEY FEATURES:
- Features a Walk Through Seat Design,
- Centered 4-Bar Linkage
- Large Foot Plate and Grip Handle
- Height: N/A
- Weight: 177 lbs.

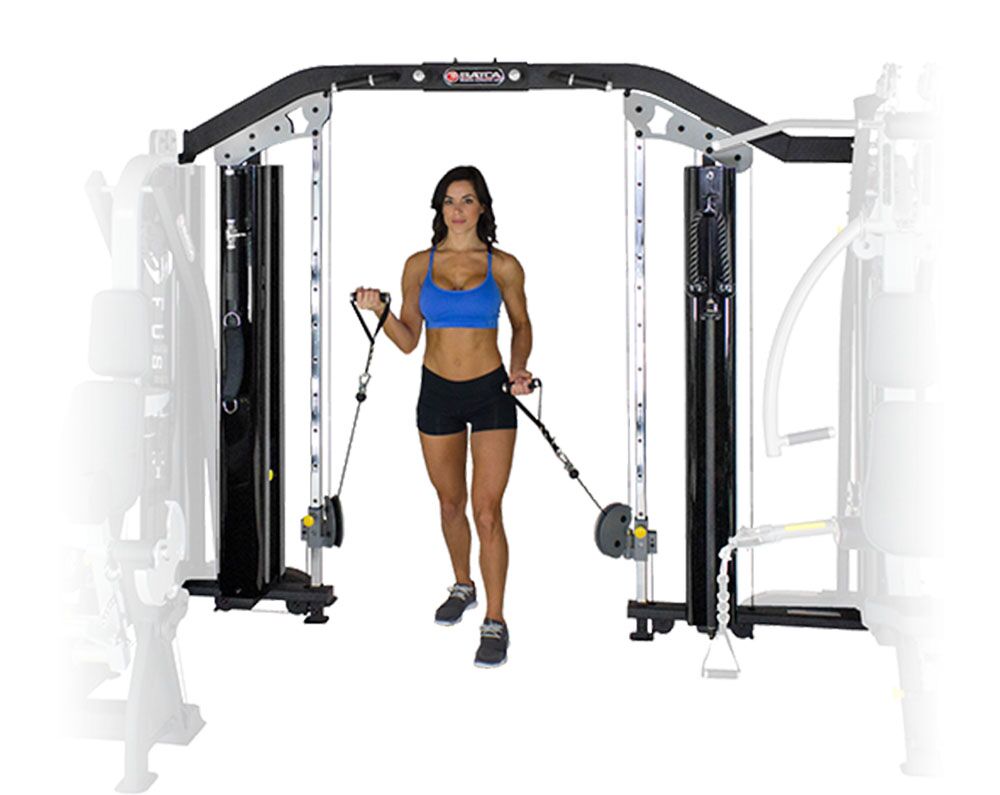

FUSION FUNCTIONAL TRAINER KEY FEATURES:
- Dual Position Chin Up Station features wide and neutral grip
- Height Adjustable Swivel Pulleys for unlimited free cable exercises
- On board accessories: Long Bar, Short Bar, Tricep Rope and Ankle Strap
- Fully Enclosed 200 lb. Weight Stack Weight Ratio .5:1
- Height: 7′ 2″
- Weight: 2,166 lbs.
