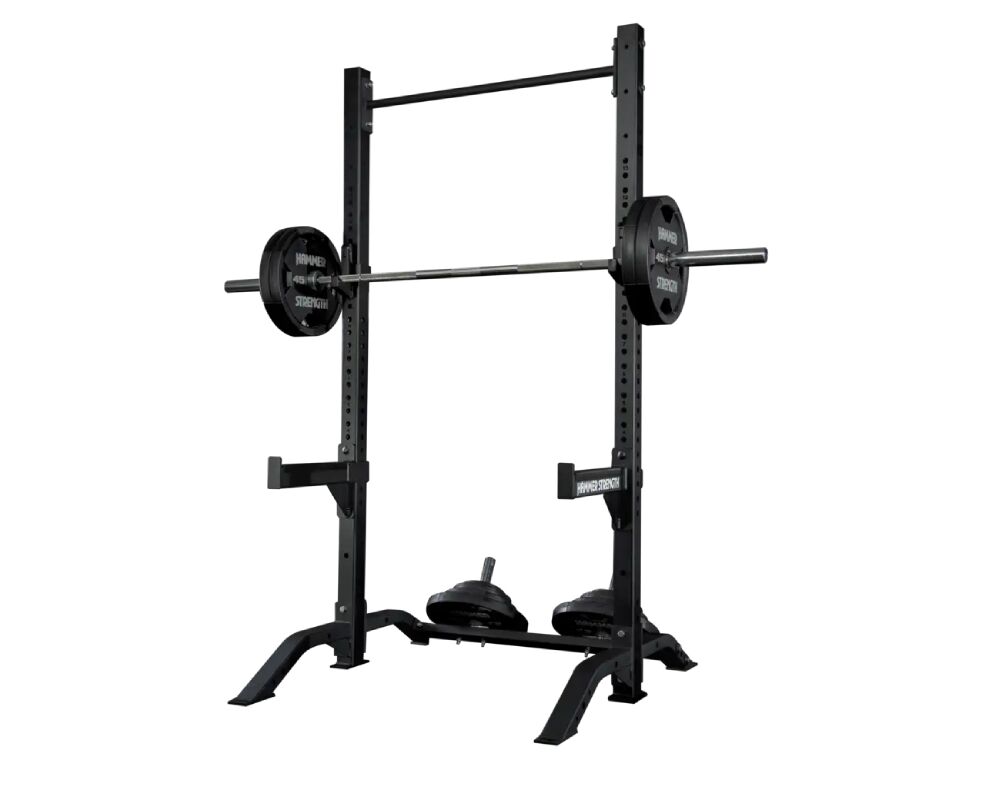

Hammer Strength HD Athletic NX Squat Stand | HDW-SQST

Hammer Strength HD Athletic NX Squat Stand | HDW-SQST Key Features:

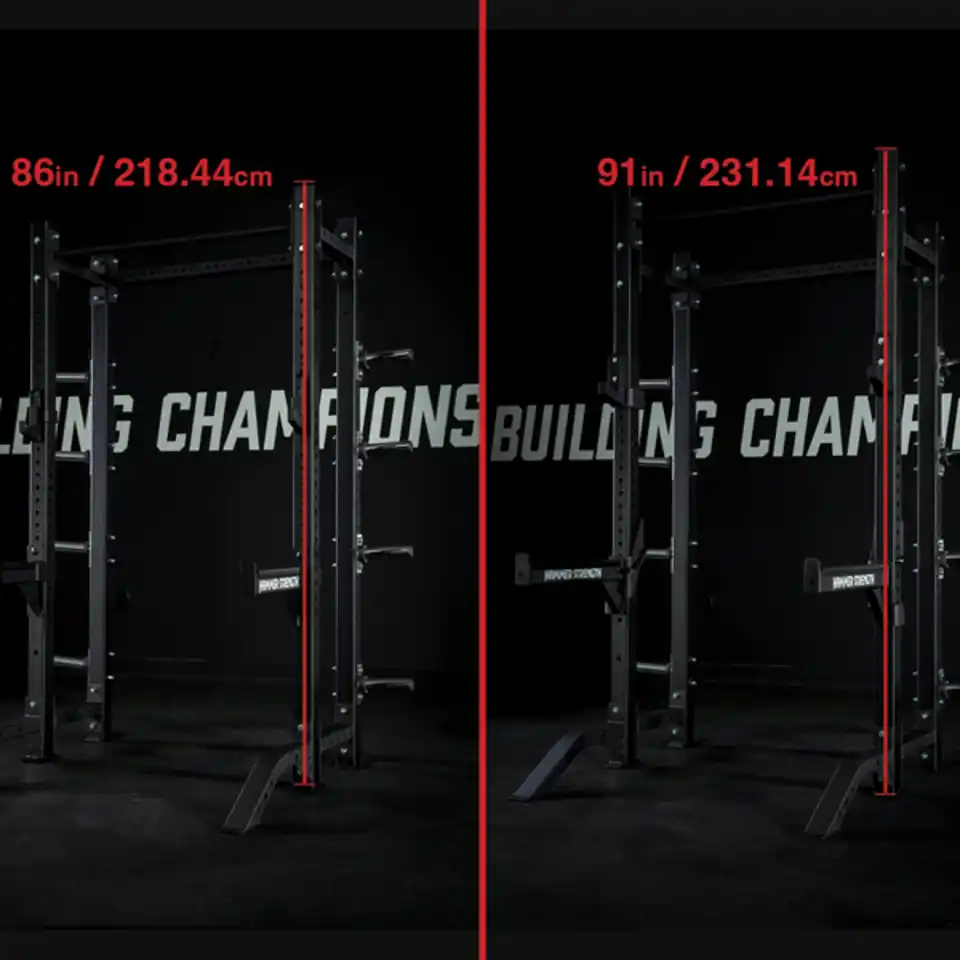

• Two available upright heights: 86 in (218.44 cm) or 91 in (231.14 cm) to suit different ceiling heights
• Pull-up options include Monkey Bar, Offset Bar, 2-Handle Bar, or 2×3 Square X-member
• Frame / uprights: built with 3″ × 3″ 11-gauge steel tubing, with laser-cut holes and numbering
• Bar supports and catches: includes standard bar supports and standard bar catches (18 in length) as default; premium or alternate options are available
• Weight horns / storage: comes with two 11-inch weight horns (each holds multiple plates)
• Footprint / dimensions: 53 in (depth) × 48 in (width) × 86 in (height) in one configuration
• Load capacity: supports up to 405 lb (approx. 184 kg) training weight
• Finish & aesthetics: charcoal powder coat frame (durable finish) with option for custom color
• Configurable / modular design: part of the HD Athletic NX line, meant to be upgradable, customizable, and expandable
• Space / ceiling compatibility: designed so training uprights can fit in standard 8-ft (2.44 m) ceiling rooms depending on height choice

PULL UP OPTIONS

2X3 Xmember

The 2X3 Xmember should be used in facilities that plan to use camera-based training systems.Compatible with HD Athletic Ball Grips (HDT-BG3)

Offset Bar

Maximize space with the Offset Bar. With two 1.25” textured pull-up bars, this option provides both high and low pulling points with a 9” separation to compensate for lower training uprights.

2-HANDLE BAR

A Hammer Strength classic, the 2-Handle pull-up bar features 1.25” handles in mixed configurations. This pull-up option features grips on each handle and embodies one of Hammer Strengths’ true design philosophies: supreme ergonomics.

MONKEY BAR

The most traditional of all pull-up bars. The Monkey Bar has high versatility and is the lowest cost option. The bar is 1.25” in diameter and uses a high-wear, textured paint to enhance grip and extend the finish life.

ADD-ONS

Premium HR Bar Catches

Premium Half Rack Bar Catches are 22” (56 cm) long and feature a three-sided urethane guard that protects both the catch and the barbell. Two shock absorption pads and vertical displacement brackets prevent damage to the rack. The Premium Catch attaches with a pin through the side of the rack for added strength and stability. The finish is durable high-wear charcoal powder coating with a chrome pin. ASTM rated to 495 lbs.

Standard HR Bar Catches

The Standard Half Rack Bar Catches are 18” (46 cm) in length and use a 3-sided urethane guard to shield the catch and the bar. The catch pins easily from the face of the rack and locks in place. The charcoal finish is a durable matte powder coating that includes paint guard tape to help protect the training uprights. ASTM rated to 405 lbs.

Premium Bar Supports

The Premium Bar Support is a welded ½” plate protected by an oversized, injection-molded urethane cover for bar protection. The landing area is a 2” resting zone that tapers to 1.5” for wider hand clearance. The finish is a durable high-wear charcoal powder coating with a chrome pin. The interior is wrapped with 3/8” urethane paint guards to prevent any metal-on-metal contact with the rack.

Standard Bar Supports

The Standard Bar Support is a welded 3/8” plate protected by an injection-molded urethane cover for bar protection. The charcoal finish is a durable matte powder coating that includes paint guard tape to help protect the training uprights. The profile of the landing and resting zone are ASTM and EN compliant.
