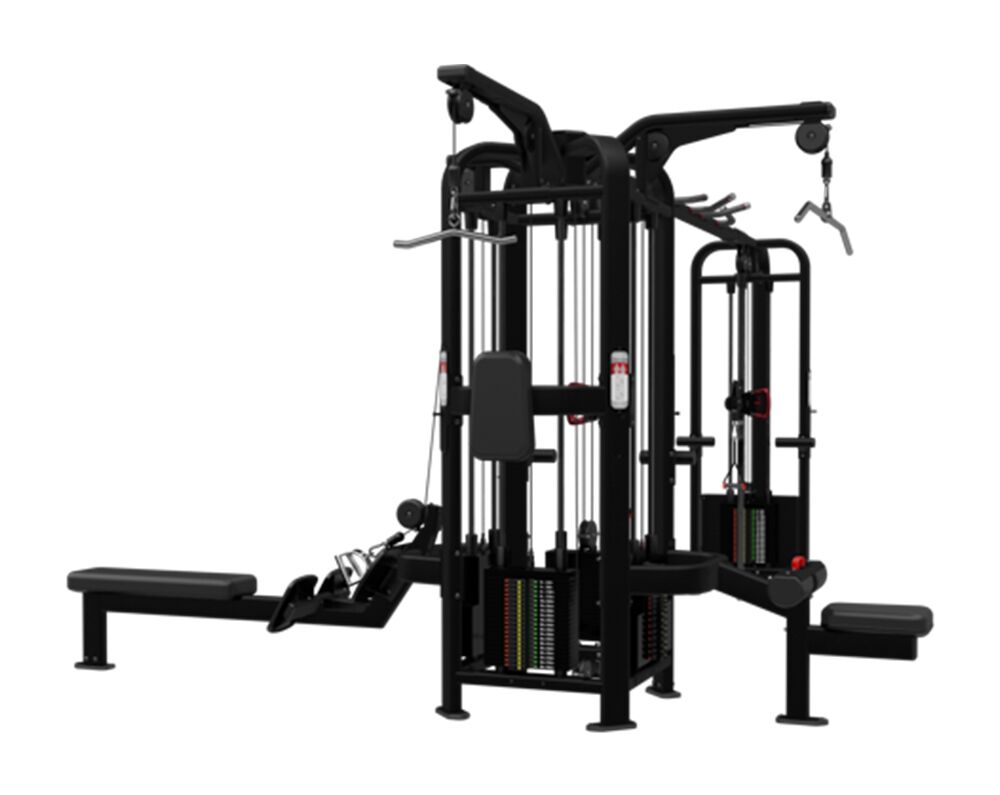

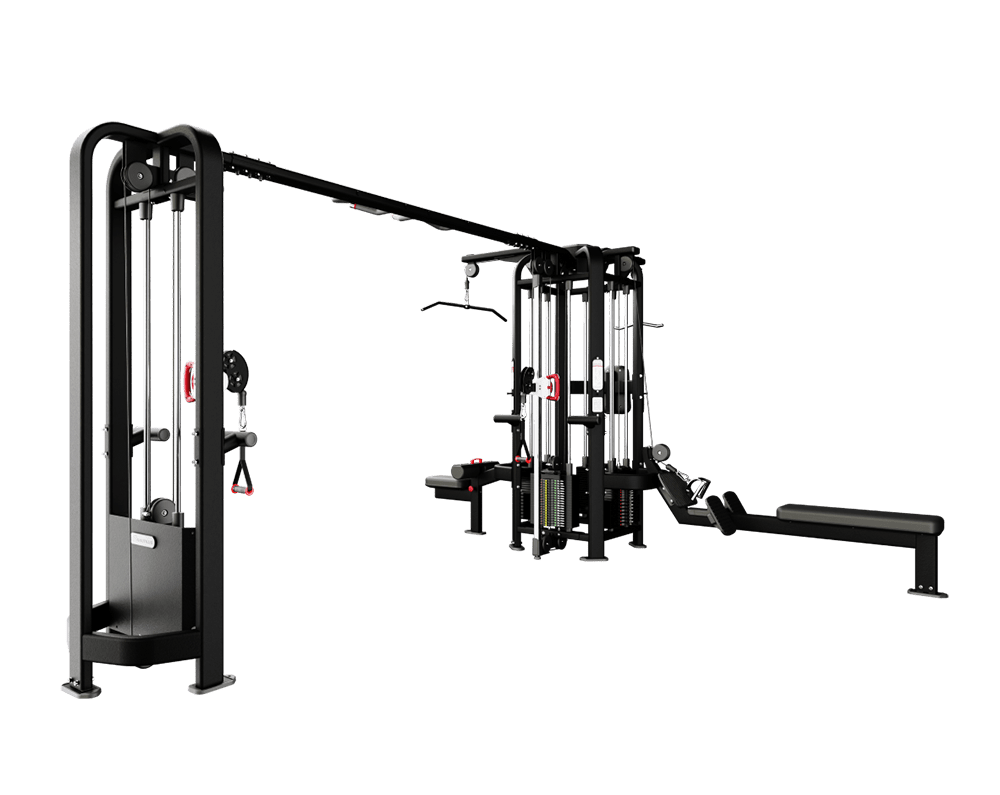

Nautilus 5 Station Gym With Adjustable Pulleys
Was | Now $14,999.00
Save : $500
About
HUGE VARIETY. SMALL FOOTPRINT.
Sometimes you have space for multiple pieces of equipment and sometimes you don’t. That is exactly why our Nautilus Multi-Stations 5 Station can be such a great option when you’re still looking for the total workout experience and commercial feel while needing to maximize space. Each of our multi-stations have the smallest footprint possible while combining the most essential and core elements from our strength lines. Add in great features like swiveling pulleys on the Lat Pull Down, Low Row and Triceps Press and fully adjustable pulleys on the Cable Cross Over System, and you have an economical, space-saving equipment solution that doesn’t look, feel or train like one.
LOCK N LOAD® WEIGHT SELECTION
Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.
PRODUCT CUSTOMIZATION
We know what it takes to build an authentic, meaningful brand experience. Our customization program is the perfect way to leverage your personal brand and make a strong first impression. Get Nautilus Multi-Stations 5 Station with in a variety of custom frame color and upholstery options.
ABOUT NAUTILUS
Core Health & Fitness is a vertically integrated company, they manufacture, sell, and support high quality commercial fitness equipment for their iconic brands; StairMaster, Schwinn, Nautilus, Star Trac and Throwdown.
They understand the importance of a worldwide presence and recognize the benefits of well networked partnerships. From space design and equipment selection, to introducing technology, flooring and recovery space partners; Core has a global network to meet your every need from concept to installation and through fitness programming and maintenance.
Their promise is to maximize customer delight and trust. It is our job to go above and beyond to create memorable customer experiences and surpass your expectations. They endeavor to create strong relationships and lifelong brand advocates by delivering a world-class customer experience.
As a vertically integrated company, their manufacturing facility produces only high-end commercial fitness products and is OEM for many consumer fitness brands like MYX and Bowflex.
With a focus on financial consolidation, quality control and supply chain integration, they are continually improving operations with the future of the fitness industry at the focal point of their planning.
In addition to manufacturing their own products, Core Health & Fitness is the OEM provider for many top tier brands in the fitness industry. This diverse portfolio has allowed us to expand on manufacturing capabilities while also mitigating risk.
Built in 2003, their facility features over 1M square feet of manufacturing space, research and development laboratories as well as executive and administrative offices. A leading-edge manufacturing area boasts continuous-flow assembly lines, electronic assembly, metal fabrication and weld shops.
The ongoing expansion of development and manufacturing capabilities emphasizes their commitment to continually raise the benchmark for value and quality in fitness and health products and services.
Warranty | |
FRAME: | 10 Years |
PARTS: | 5 Years |
LABOR: | 1 Year |
Specifications | |
DIMENSIONS: | 152"L x 200"W x 94"H |
PRODUCT WEIGHT: | 2350 LBS (1066 KG) |
STACK WEIGHT: | LAT PULL DOWN/LOW ROW: 297 lbs |
TRICEPS PRESS: 231 lbs | |
CROSS OVER: 2 X 115.5 lbs | |
SHIPPING WEIGHT: | 2556 LBS (1160 KG) |
ADJUSTMENTS & MOVEMENTS | |
USER DEFINED RANGE OF MOTION: | Yes |
ASSISTED ADJUSTMENTS: | Fully adjustable cable cross over system with spring-loaded pull pin handle for vertical adjustments |
COLOR CODED PIVOT POINTS AND ADJUSTMENTS: | Yes on all units |
UNILATERAL OR BILATERAL MOVEMENT: | Unilateral and Bilateral, cable driven movements |
CONVERGING OR DIVERGING MOVEMENTS: | User defi ned path of motion with swivel pulley and unlimited high-low cable positioning combinations |
PULLEY RATIO: | 2:1 |
FRAME SPECIFICATIONS & CABLE INFORMATION | |
STANDARD FRAME COLOR OPTIONS: | Silver |
STANDARD UPHOLSTERY COLOR OPTIONS: | Black |
FRAME FINISH: | Electrostatic Powder coating |
CUSTOMIZABLE PAINT OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
CUSTOMIZABLE BRANDING OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
CABLE VS. BELT DRIVEN TRANSMISSION: | Cable drive |
BOLT DOWN LOCATIONS DEFINED: | Yes |
INTEGRATED LEVELING SYSTEM: | No, rubber feet for floor protection |
HARDWARE TYPE: | Hex / Button Head |
TUBBING STYLE & THICKNESS: | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
USER SPECIFIC INFORMATION | |
STATIC PLACARDS: | Yes, simple and intuitive placard |
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE: | Yes |
ANIMATED LENTICULAR: | No |
SAFETY CATCH & STOPS: | Yes |
WATER BOTTLE HOLDER: | No |
PHONE HOLDER: | No |
GRIP SPECIFICATIONS: | Stabilization handles for balance and control. Rubber, large grips for pushing, smaller grips for pulling. Multiple handle accessory options: add-on package avail 95-0590 (1) triceps rope, (1) aluminum lat bar, (1) aluminum curl bar, (1) aluminum low row handle, (1) single rope handle, (1) v-triceps bar, (1) ankle cuff, (1) walking wait belt |
FOOT PLATFORM: | Independent rubber foot platforms for low row stabilization |
CONTOURED PADS: | No |
RESTRAINT SYSTEM: | N/A |
WEIGHT STACK SPECIFICATIONS | |
TOTAL STACK WEIGHT: | 1056 lbs (479 kg) |
INCREMENTAL WEIGHT SYSTEM: | 5 lb incremental add on plates |
WEIGHT STACK TOWER HEIGHT: | N/A |
PLATE LOADED: | No |
WEIGHT STORAGE SOLUTION: | N/A |
LNL TECHNOLOGY: | Yes |
ADD-ON RESISTANCE AVAILABLE: | 5 lb incremental plates |
WEIGHT STACK SHROUD SPECIFICATIONS: | Steel on Cable Cross Over |
FEATURES
NAUTILUS MULTI-STATIONS 5 STATION KEY FEATURES:
- Lat Pull Down with swivel pulley
- Triceps Press with swivel pulley
- Low Row with swivel pulley
- Fully adjustable cable cross over system
- Integrated pull-up station
- Stabilization handles for balance and control
- Lock N Load® weight selection system
- Rubber feet for floor protection
- 5 lb incremental add on plates
