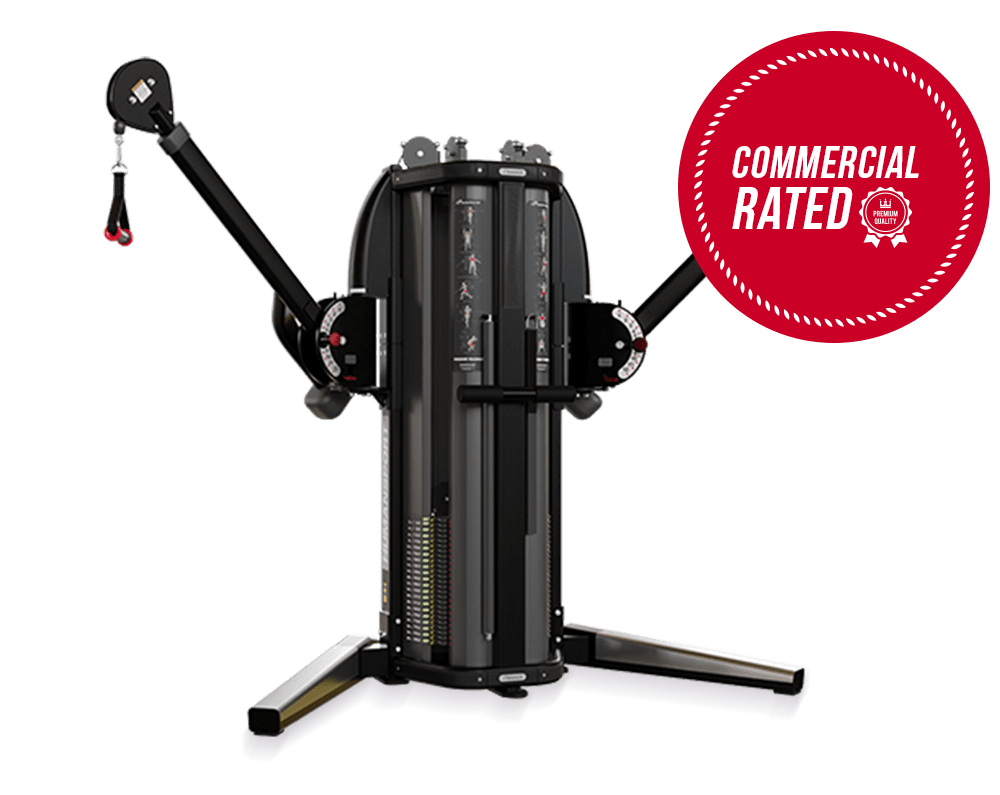

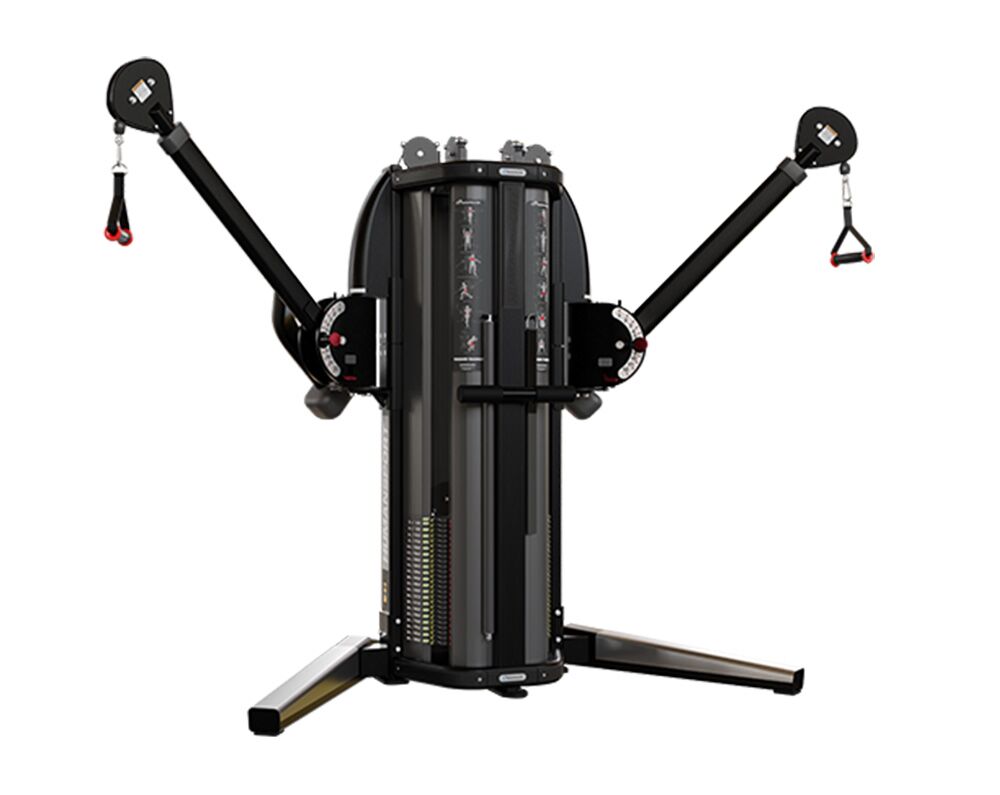

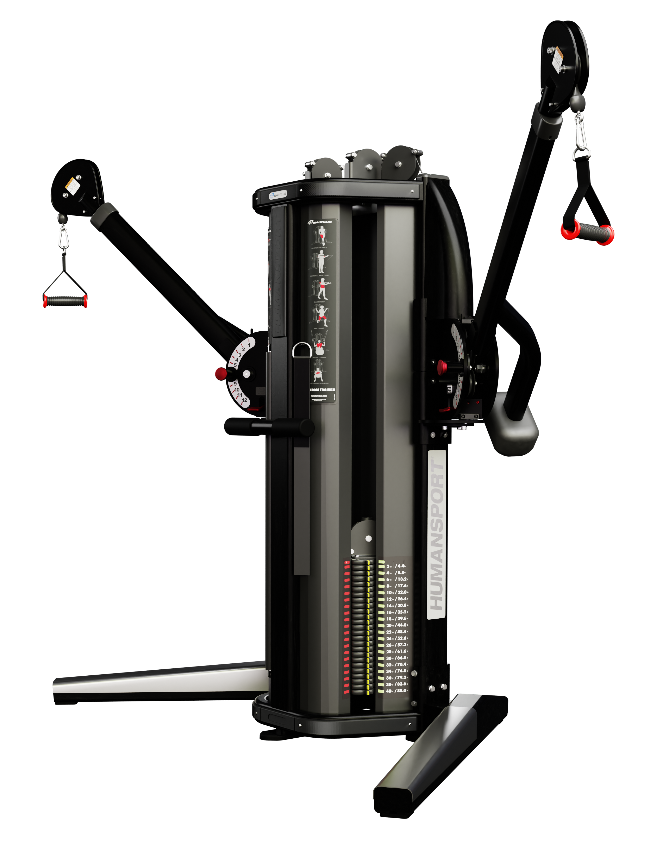

Nautilus HumanSport Freedom Trainer | HSFT3
Was | Now $7,999.00
Save : $600
About
Nautilus HumanSport Freedom Trainer | HSFT3 is a seven cable based machines with dual weight stacks provide a complete range of workouts for total body training. When paired with the provided programming designed by our Master Instructors, HumanSport makes a powerful addition to any facility.
FREEDOM TRAINER
ONE MACHINE. ALL THE MOVES.

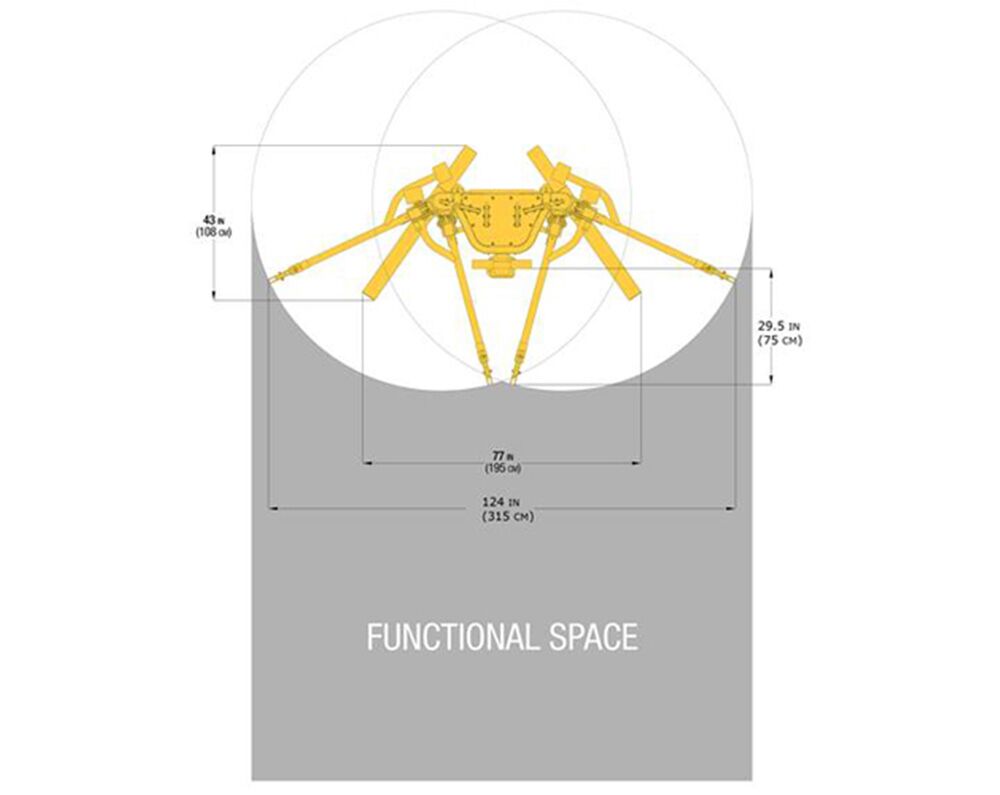

The NEW Nautilus Freedom Trainer is so simple, intuitive and natural that it feels as if it were custom-built for each and every user. This cable-based machine offers user-defined path of motion, intuitive lock-n-load dual weight stacks and is wheelchair accessible. It is ideal for functional training and occupies a mere 9.5 FT (290 CM) training space.

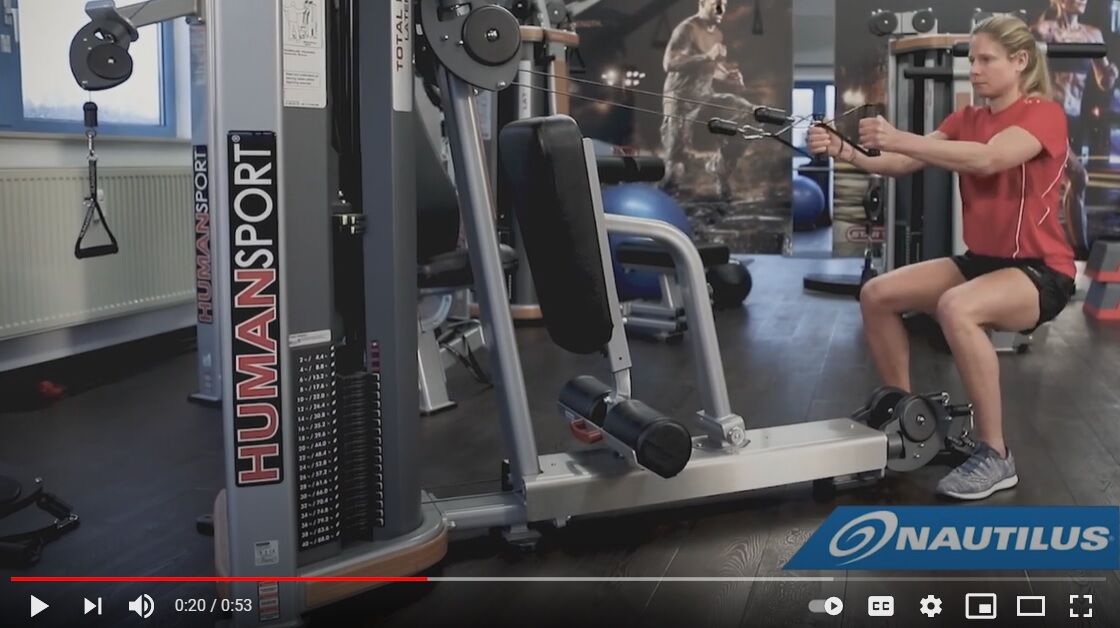

LOCK N LOAD®
Now weight selection is as easy as flipping a switch. The intuitive Lock N Load® design is easily recognizable. If you’ve ever flicked a light switch on and off, you’ll immediately understand how it works. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. The Nautilus HumanSport Freedom Trainer | HSFT3 Lock N Load prevents unnecessary maintenance and customer service headaches since there are no pins to lose or replace.
ABOUT NAUTILUS
Core Health & Fitness is a vertically integrated company, they manufacture, sell, and support high quality commercial fitness equipment for their iconic brands; StairMaster, Schwinn, Nautilus, Star Trac and Throwdown.
They understand the importance of a worldwide presence and recognize the benefits of well networked partnerships. From space design and equipment selection, to introducing technology, flooring and recovery space partners; Core has a global network to meet your every need from concept to installation and through fitness programming and maintenance.
Their promise is to maximize customer delight and trust. It is our job to go above and beyond to create memorable customer experiences and surpass your expectations. They endeavor to create strong relationships and lifelong brand advocates by delivering a world-class customer experience.
As a vertically integrated company, their manufacturing facility produces only high-end commercial fitness products and is OEM for many consumer fitness brands like MYX and Bowflex.
With a focus on financial consolidation, quality control and supply chain integration, they are continually improving operations with the future of the fitness industry at the focal point of their planning.
In addition to manufacturing their own products, Core Health & Fitness is the OEM provider for many top tier brands in the fitness industry. This diverse portfolio has allowed us to expand on manufacturing capabilities while also mitigating risk.
Built in 2003, their facility features over 1M square feet of manufacturing space, research and development laboratories as well as executive and administrative offices. A leading-edge manufacturing area boasts continuous-flow assembly lines, electronic assembly, metal fabrication and weld shops.
The ongoing expansion of development and manufacturing capabilities emphasizes their commitment to continually raise the benchmark for value and quality in fitness and health products and services.
| Warranty | |
| FRAME: | 10 Years |
| PARTS: | 5 Years |
| LABOR: | 1 Year |
| Specifications | |
| DIMENSIONS: | 43"L x 75"W x 72"H |
| Arms Extended Left and Right: | 125"W |
| Arms Extended Vertically Up: | 92"H |
| PRODUCT WEIGHT: | 1,100 lbs |
| SHIPPING WEIGHT: | 1,150 lbs |
| STACK WEIGHT: | 2x 80 lbs |
| ADJUSTMENTS & MOVEMENTS | |

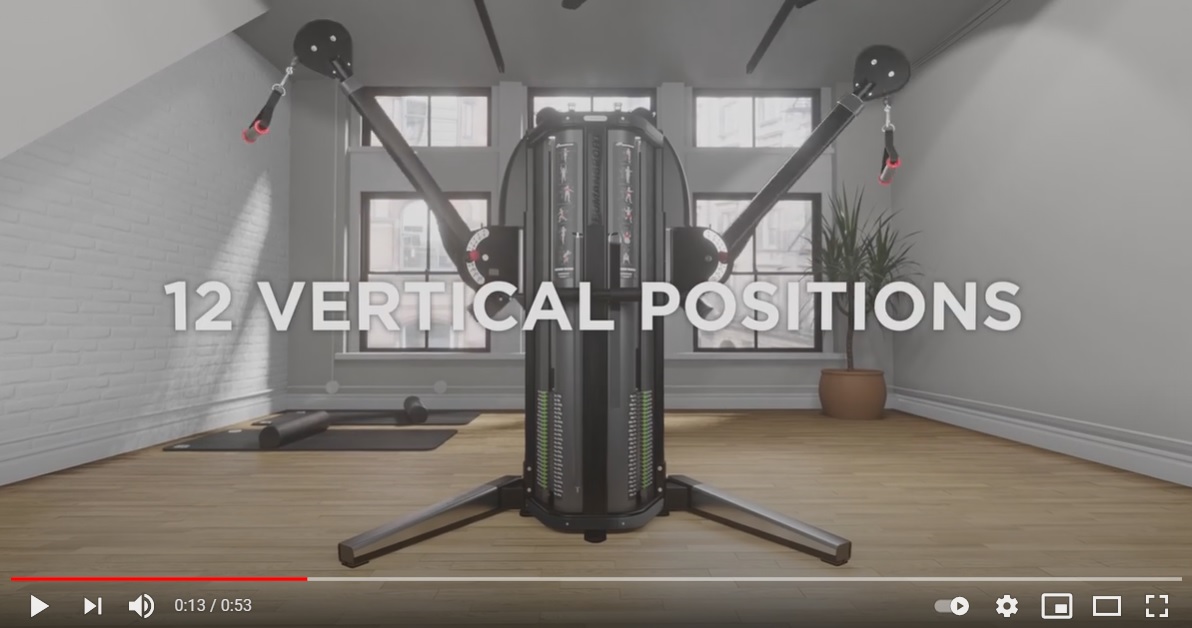

| USER DEFINED RANGE OF MOTION: | Yes, cable-based training utilizing multiple planes of motion. Nine horizontal position options and 12 vertical position adjustment options |
| ASSISTED ADJUSTMENTS: | Yes, counter balanced on vertical adjustment arm ends |
| COLOR CODED PIVOT POINTS AND ADJUSTMENTS: | Yes, including visual indicators when pull pin is disengaged |
| UNILATERAL OR BILATERAL MOVEMENT: | Yes, independent arms use for user defined path of motion by incorporating independent weight stacks and swivel pulleys |
| CONVERGING OR DIVERGING MOVEMENTS: | Yes, user defined |
| PULLEY RATIO: | 3:1 ratio with 9.5 ft (289.5 cm) training space and 113 in (287 cm) cable travel |
| FRAME SPECIFICATIONS & CABLE INFORMATION | |
| STANDARD FRAME COLOR OPTIONS: | Silver with wood trim, Silver with carbon fiber trim, Black with carbon fiber trim, Black with wood trim |
| STANDARD UPHOLSTERY COLOR OPTIONS: | N/A |
| FRAME FINISH: | Electrostatic Powder coating |
| CUSTOMIZABLE PAINT OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
| CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE: | N/A |
| CUSTOMIZABLE BRANDING OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CABLE VS. BELT DRIVEN TRANSMISSION: | 4mm cable driven |
| BOLT DOWN LOCATIONS DEFINED: | Yes, 3 defined bolt down locations located on weight stack tower |
| INTEGRATED LEVELING SYSTEM: | No, rubber feet for floor protection |
| HARDWARE TYPE: | Hex / Button Head |
| FRAME: | Modern blend of square and round tubing. Most are 3 or 2.5 mm / 11 ga |
| TUBBING STYLE & THICKNESS: | |
| USER SPECIFIC INFORMATION | |
| STATIC PLACARDS: | 12 pre-defined exercises with static placards with start and finish diagrams |
| MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE | Yes |
| ANIMATED LENTICULAR: | No |
| SAFETY CATCH & STOPS: | N/A |
| WATER BOTTLE HOLDER: | No |
| PHONE HOLDER: | No |
| GRIP SPECIFICATIONS: | Oversized, rubber grips on stabilization handles which provide ideal positioning for hip, knee and ankle exercises |
| FOOT PLATFORM: | N/A |
| CONTOURED PADS: | N/A |
| RESTRAINT SYSTEM: | N/A |
| WEIGHT STACK SPECIFICATIONS | |
| TOTAL STACK WEIGHT: | User Feels Stack Weight Capacity: 2x 80 lb (2x 36 kg) at each handle through two, independent and enclosed weight stacks. Actual weight stack, 2x 240 lb (109 kg) |
| INCREMENTAL WEIGHT SYSTEM: | No |
| WEIGHT STACK TOWER HEIGHT: | 68.5 in (174 cm) |
| PLATE LOADED: | N/A |
| WEIGHT STORAGE SOLUTION: | No but it does include accessory rack for multiple pulley attachments: – Grip Handles (2) – Ankle strap – Long bar |
| LNL TECHNOLOGY: | Yes, standard |
| ADD-ON RESISTANCE AVAILABLE: | No |
| WEIGHT STACK SHROUD SPECIFICATIONS: | Inside and outside steel shrouds. |
FEATURES
Nautilus HumanSport Freedom Trainer | HSFT3 Key Features:
- Dual weight stacks for personalized or group training, as a standard configuration
- User Feels Stack Weight Capacity: 2x 80 LB (2x 36 KG) at each handle through two, independent and enclosed weight stacks.
- Cable drive system, user defined path of motion
- Nine horizontal position options and 12 vertical position adjustment options
- 3:1 ratio with 9.5 FT (289.5 CM) training space and 113 IN (287 CM) cable travel
- Supporting both low and slow resistance and explosive movements
- Integrated ballet bar to assist with stretching and stability
- Standard accessories included: pair of hand grips, ankle strap, and padded bar
- 12 pre-defined exercises with static placards, many more available
- Easy access to guild rods from the front or rear shrouds
- Flat back tower to be positioned against a wall, pillar, matching machines, or others in your functional training area(s)
- Simple cable replacement procedures
- Standard roller bearings replace plastic bushings for smoother rotation
- Fits through a standard door frame for ease of install and transport
- Open top design to visually inspect cables without having to remove shrouds
- 3 floor bolt locations
- Stainless steel wear plates

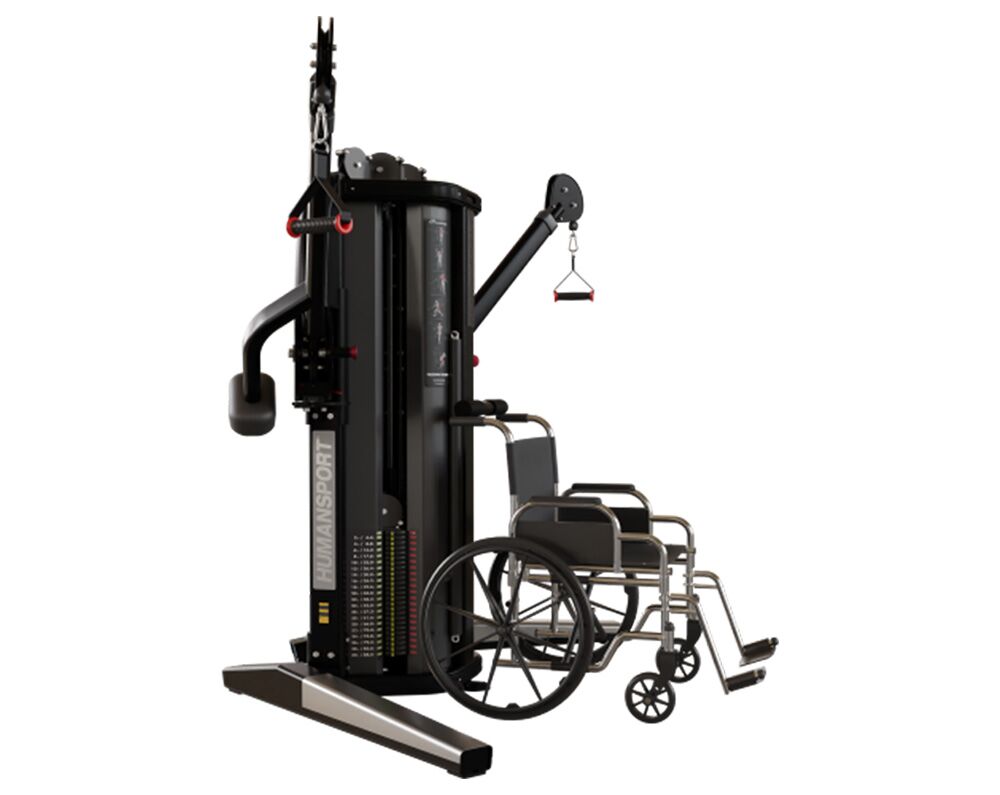

WHEELCHAIR ACCESSIBILITY:
- 3:1 cable ratio for low starting resistance
- Weight stack utilizes LockNLoad switch technology for quick and easy weight selection even while seated
- Easily adjustable, counter balanced pivot handles, even while in the seated position
- Open design allowing for wheelchair access
