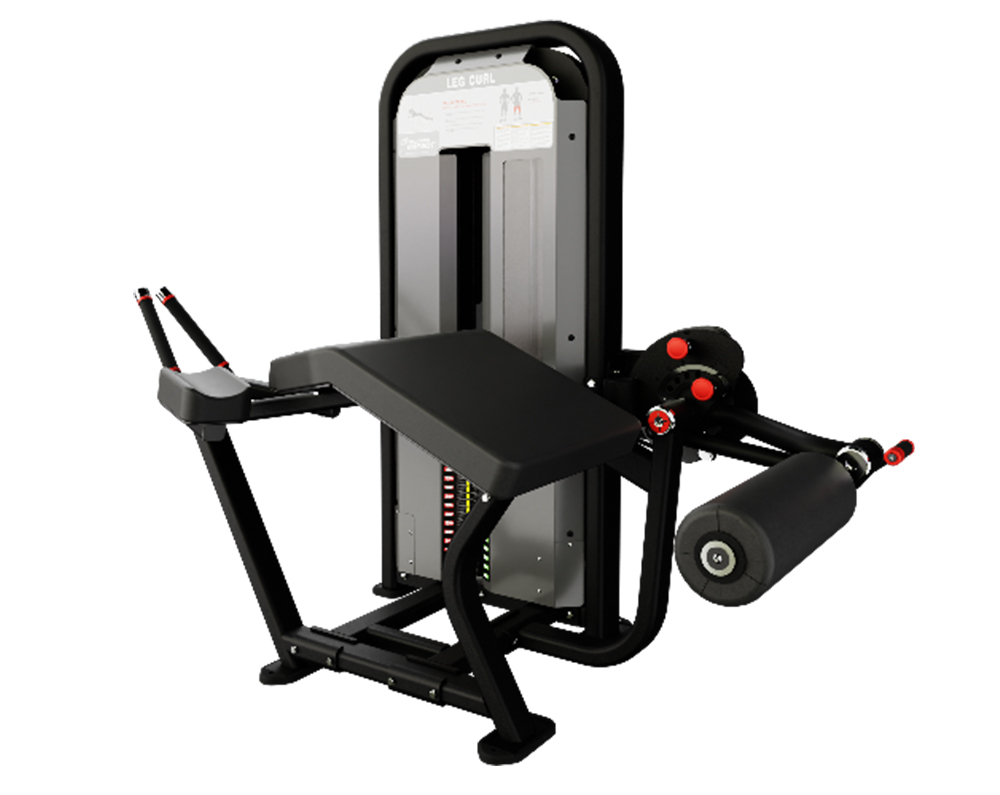

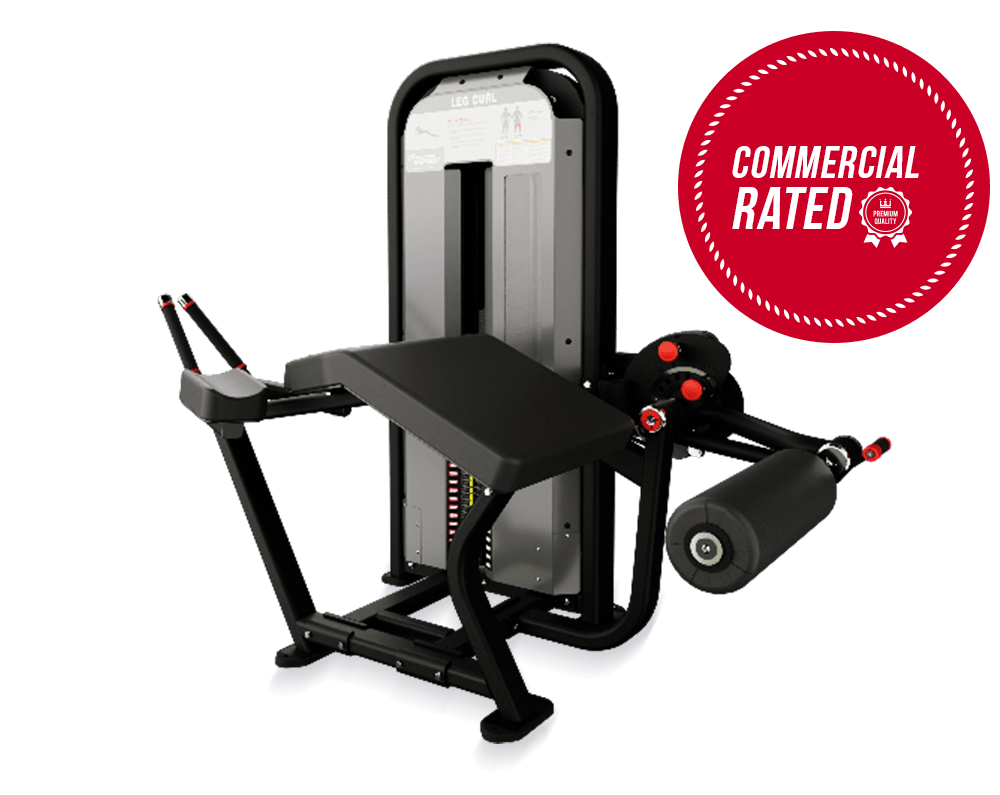

Nautilus Impact Leg Curl
Was | Now $5,999.00
Save : $500
About
PROVEN. SMART. EFFECTIVE.
The Nautilus Impact Leg Curl is part of Impact® Strength line that brings many subtle innovations to the power of your next weight training workout. It is the evolution of the proven biomechanics and user features that have made the strength line a solid, competitive product. This line retains all the unique, proven, individual design features that customers have stated are ideal such as pre-stretch, start assist, range of motion selection and graduated & standard heavy weight stacks. Impact Strength incorporates new aesthetics and biomechanics features that have established its position as a competitive and diverse strength product line.
LOCK N LOAD®
Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Nautilus Impact Leg Curl Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.
THE ESSENTIAL STRENGTH LINE
This 23 piece line covers all of the essentials needed make up the foundation of any facility. Suited for all fitness levels, users can isolate and focus on each body part, making their workout customizable and efficient. Proven biomechanics and a rock solid construction ensure the durability that club owners expect.
ABOUT NAUTILUS
Core Health & Fitness is a vertically integrated company, they manufacture, sell, and support high quality commercial fitness equipment for their iconic brands; StairMaster, Schwinn, Nautilus, Star Trac and Throwdown.
They understand the importance of a worldwide presence and recognize the benefits of well networked partnerships. From space design and equipment selection, to introducing technology, flooring and recovery space partners; Core has a global network to meet your every need from concept to installation and through fitness programming and maintenance.
Their promise is to maximize customer delight and trust. It is our job to go above and beyond to create memorable customer experiences and surpass your expectations. They endeavor to create strong relationships and lifelong brand advocates by delivering a world-class customer experience.
As a vertically integrated company, their manufacturing facility produces only high-end commercial fitness products and is OEM for many consumer fitness brands like MYX and Bowflex.
With a focus on financial consolidation, quality control and supply chain integration, they are continually improving operations with the future of the fitness industry at the focal point of their planning.
In addition to manufacturing their own products, Core Health & Fitness is the OEM provider for many top tier brands in the fitness industry. This diverse portfolio has allowed us to expand on manufacturing capabilities while also mitigating risk.
Built in 2003, their facility features over 1M square feet of manufacturing space, research and development laboratories as well as executive and administrative offices. A leading-edge manufacturing area boasts continuous-flow assembly lines, electronic assembly, metal fabrication and weld shops.
The ongoing expansion of development and manufacturing capabilities emphasizes their commitment to continually raise the benchmark for value and quality in fitness and health products and services.
Warranty | |
FRAME: | 10 Years |
PARTS: | 5 Years |
LABOR: | 1 Year |
Specifications | |
DIMENSIONS: | 71"L x 38"W x 60"H |
PRODUCT WEIGHT: | 516 LB (234 KG) |
STACK WEIGHT: | 180 LB (90 KG) |
SHIPPING WEIGHT: | 589 LB (267 KG) |
ADJUSTMENTS & MOVEMENTS | |
USER DEFINED RANGE OF MOTION: | Fixed path |
ASSISTED ADJUSTMENTS: | SKU Dependent, Gravity assisted positioning, adjustable seat with “easy up” ratcheting adjustment |
COLOR CODED PIVOT POINTS AND ADJUSTMENTS: | Yes |
UNILATERAL OR BILATERAL MOVEMENT: | Yes, unit dependent |
CONVERGING OR DIVERGING MOVEMENTS: | Yes, unit dependent |
PULLEY RATIO: | 1:1 |
FRAME SPECIFICATIONS & CABLE INFORMATION | |
STANDARD FRAME COLOR OPTIONS: | Black |
STANDARD UPHOLSTERY COLOR OPTIONS: | Black |
FRAME FINISH: | Electrostatic Powder coating |
CUSTOMIZABLE PAINT OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
CUSTOMIZABLE BRANDING OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
INCREMENTAL WEIGHT SYSTEM: | 5lb incremental weight system for optimal progression |
CABLE VS. BELT DRIVEN TRANSMISSION: | SKU dependent |
BOLT DOWN LOCATIONS DEFINED: | Yes |
INTEGRATED LEVELING SYSTEM: | No, rubber feet for floor protection |
HARDWARE TYPE: | Hex / Button Head |
TUBBING STYLE & THICKNESS: | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
HEIGHT: | Changes per unit yet mostly 60" |
STATIC PLACARDS: | Yes, simple and intuitive placard |
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE: | Yes |
ANIMATED LENTICULAR: | No |
SAFETY CATCH & STOPS: | Yes, SKU dependent |
WATER BOTTLE HOLDER: | No |
PHONE HOLDER: | No |
GRIP SPECIFICATIONS: | Rubber, large grips for pushing, smaller grips for pulling |
FOOT PLATFORM: | Machine dependent |
CONTOURED PADS: | Yes, contoured back pads on select machines |
RESTRAINT SYSTEM: | No |
WEIGHT STACK SPECIFICATIONS | |
TOTAL STACK WEIGHT: | Machine dependent |
INCREMENTAL WEIGHT SYSTEM: | 5 lb incremental weight system for optimal progression |
WEIGHT STACK TOWER HEIGHT: | Machine dependent |
PLATE LOADED: | N/A |
WEIGHT STORAGE SOLUTION: | N/A |
LNL TECHNOLOGY: | Yes |
ADD-ON RESISTANCE AVAILABLE: | Yes, 5 lb incremental |
WEIGHT STACK SHROUD SPECIFICATIONS: | Inside and outside steel shrouds, clear windows on both sides |
FEATURES
NAUTILUS IMPACT LEG CURL KEY FEATURES:
- User-friendly weight stack selection
- 5 lb incremental weight system for optimal progression
- Pull-pin adjustment
- Gravity assisted positioning
- Featuring the patented Lock N Load® weight selection system
