Nautilus Smith Machine
Was | Now $5,499.00
Save : $500
About
Working out with plates is one of the most effective ways to train, which is why plate loaded machines are a staple for facilities. Whether you are looking to build a full strength circuit or round out your offering with specific pieces, Nautilus Plate Loaded offers the best machines for plate workouts. Each machine is built strong enough to stand up to full commercial use and is designed to make plate workouts as effective, rewarding and safe as possible.

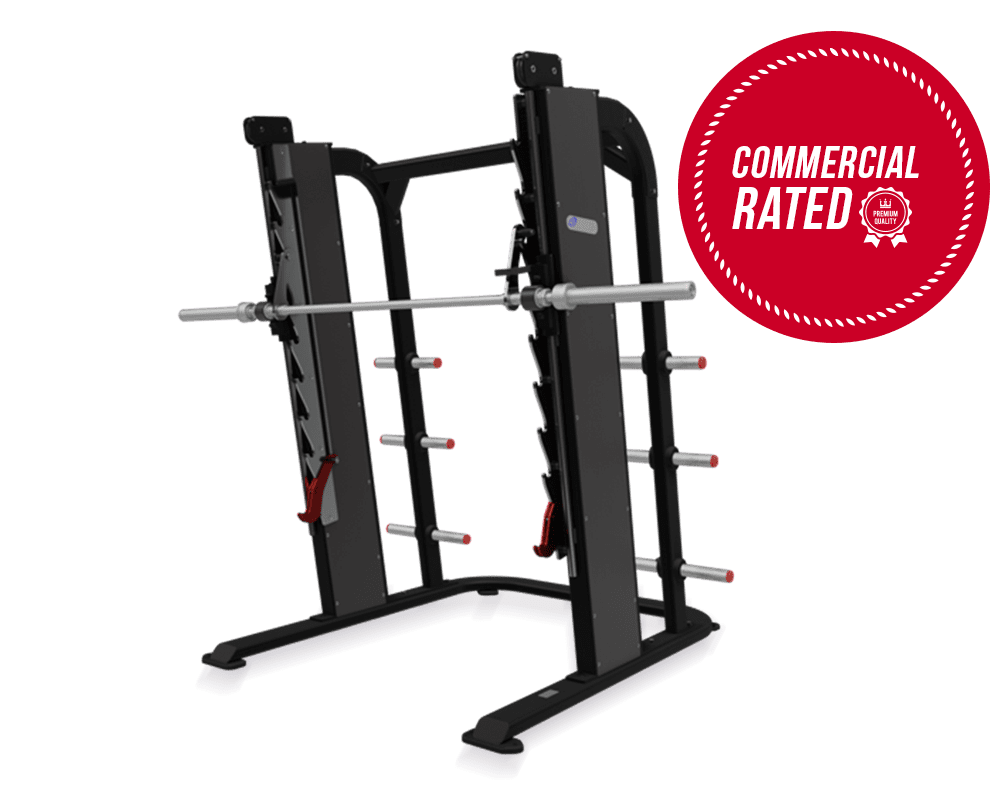

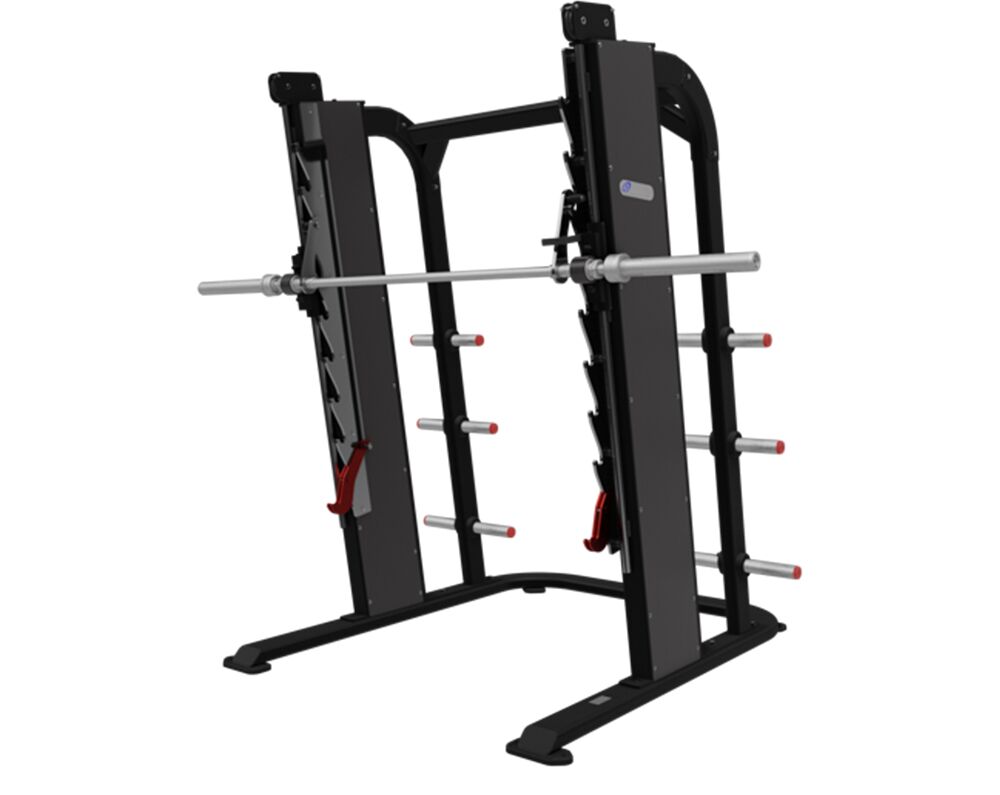

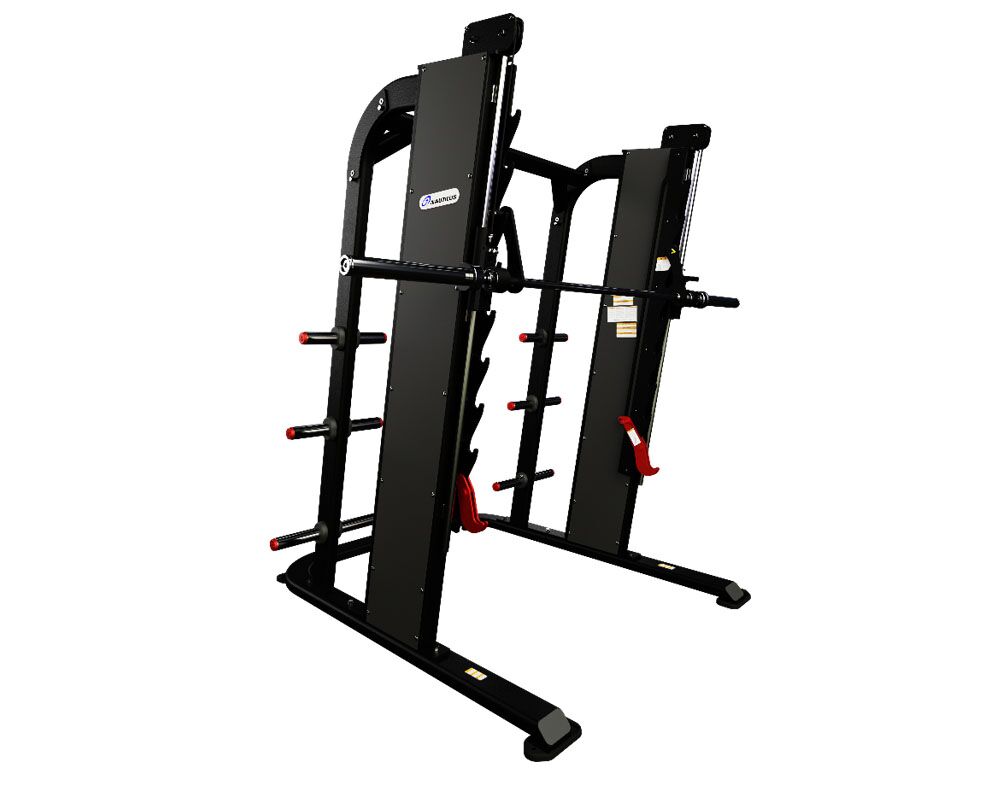

The Nautilus Smith Machine is enhanced with 7-degree angle for better biomechanics during squatting and pressing motions. Adjustable red safety catches ensure proper execution of all exercises.
ABOUT NAUTILUS
Core Health & Fitness is a vertically integrated company, they manufacture, sell, and support high quality commercial fitness equipment for their iconic brands; StairMaster, Schwinn, Nautilus, Star Trac and Throwdown.
They understand the importance of a worldwide presence and recognize the benefits of well networked partnerships. From space design and equipment selection, to introducing technology, flooring and recovery space partners; Core has a global network to meet your every need from concept to installation and through fitness programming and maintenance.
Their promise is to maximize customer delight and trust. It is our job to go above and beyond to create memorable customer experiences and surpass your expectations. They endeavor to create strong relationships and lifelong brand advocates by delivering a world-class customer experience.
As a vertically integrated company, their manufacturing facility produces only high-end commercial fitness products and is OEM for many consumer fitness brands like MYX and Bowflex.
With a focus on financial consolidation, quality control and supply chain integration, they are continually improving operations with the future of the fitness industry at the focal point of their planning.
In addition to manufacturing their own products, Core Health & Fitness is the OEM provider for many top tier brands in the fitness industry. This diverse portfolio has allowed us to expand on manufacturing capabilities while also mitigating risk.
| Warranty | |
| FRAME: | 10 Years |
| PARTS: | 5 Years |
| LABOR: | 1 Year |
| Specifications | |
| DIMENSIONS: | 67"L x 89"W x 82"H |
| PRODUCT WEIGHT: | 648 LBS (294 KG) |
| SHIPPING WEIGHT: | 794 LBS (360 KG) |
| ADJUSTMENTS & MOVEMENTS | |
| USER DEFINED RANGE OF MOTION: | Yes, enhanced biomechanics with a 7 degree angle for squatting and pressing motions |
| ASSISTED ADJUSTMENTS: | Yes, Gravity assisted positioning |
| COLOR CODED PIVOT POINTS AND ADJUSTMENTS: | Yes |
| UNILATERAL OR BILATERAL MOVEMENT: | N/A |
| CONVERGING OR DIVERGING MOVEMENTS: | N/A |
| PULLEY RATIO: | N/A |
| FRAME SPECIFICATIONS & CABLE INFORMATION | |
| STANDARD FRAME COLOR OPTIONS: | Matte Black (-60) |
| STANDARD UPHOLSTERY COLOR OPTIONS: | N/A |
| FRAME FINISH: | Electrostatic Powder coating |
| CUSTOMIZABLE PAINT OPTIONS AVAILABLE: | Yes with additional fees and extended lead times |
| CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE: | N/A |
| CUSTOMIZABLE BRANDING OPTIONS AVAILABLE: | No |
| CABLE VS. BELT DRIVEN TRANSMISSION: | N/A |
| BOLT DOWN LOCATIONS DEFINED: | Yes |
| INTEGRATED LEVELING SYSTEM : | No, rubber feet for floor protection |
| HARDWARE TYPE: | Hex / Button Head |
| TUBBING STYLE & THICKNESS: | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
| USER SPECIFIC INFORMATION | |
| STATIC PLACARDS: | No |
| MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE: | N/A |
| ANIMATED LENTICULAR: | No |
| SAFETY CATCH & STOPS: | Adjustable red safety catches to insure proper execution of all exercises |
| GRIP SPECIFICATIONS: | Rubber, smaller grips. |
| SAFETY CATCH & STOPS: | Adjustable red safety catches to insure proper execution of all exercises |
| WATER BOTTLE HOLDER: | No |
| PHONE HOLDER: | No |
| GRIP SPECIFICATIONS: | Rubber, smaller grips. |
| FOOT PLATFORM: | N/A |
| CONTOURED PADS: | N/A |
| RESTRAINT SYSTEM: | Rotating Olympic handle insures easy release and reset of bar with each set & adjustable red safety catches to insure proper execution of all exercises |
| WEIGHT STACK SPECIFICATIONS | |
| TOTAL STACK WEIGHT: | N/A |
| INCREMENTAL WEIGHT SYSTEM: | N/A |
| WEIGHT STACK TOWER HEIGHT: | N/A |
| PLATE LOADED: | Counterbalanced Olympic bar with 12 lb (5.5 kg) starting resistance |
| WEIGHT STORAGE SOLUTION: | Six, marked weight storage pegs per side to accommodate all plate increments |
| LNL TECHNOLOGY: | N/A |
| ADD-ON RESISTANCE: | Max load capacity 8-45 lb (20 kg) plates per side |
| WEIGHT STACK SHROUD SPECIFICATIONS: | N/A |
| SKU: | NAU-9NP-L8500-60AAS |
FEATURES
- Rotating Olympic handle insures easy release and reset of bar with each set
- Enhanced biomechanics with a 7 degree angle for squatting and pressing motions
- Counterbalanced Olympic bar with 15 lb (7 kg) take off weight for all user levels
- Adjustable red safety catches to insure proper execution of all exercises
- Six, marked weight storage pegs per side to accommodate all plate increments
- Rubber feet for floor protection
