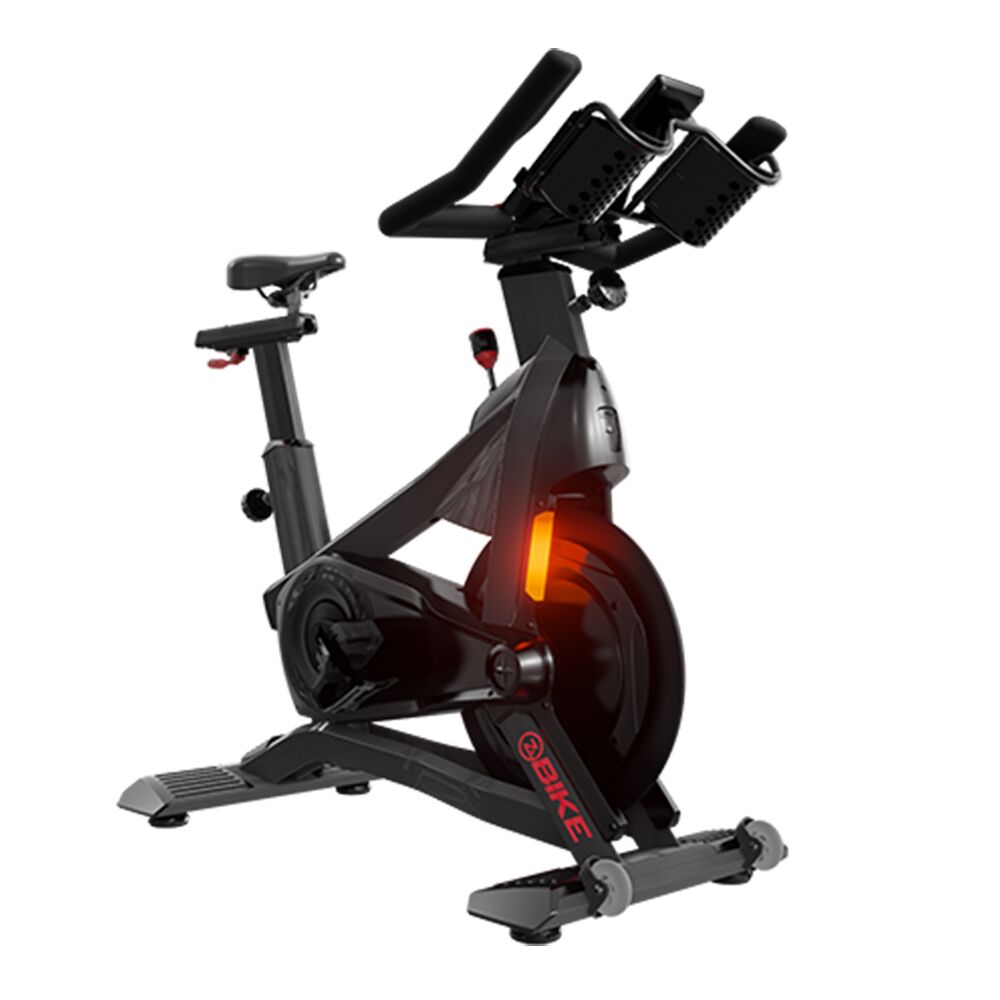

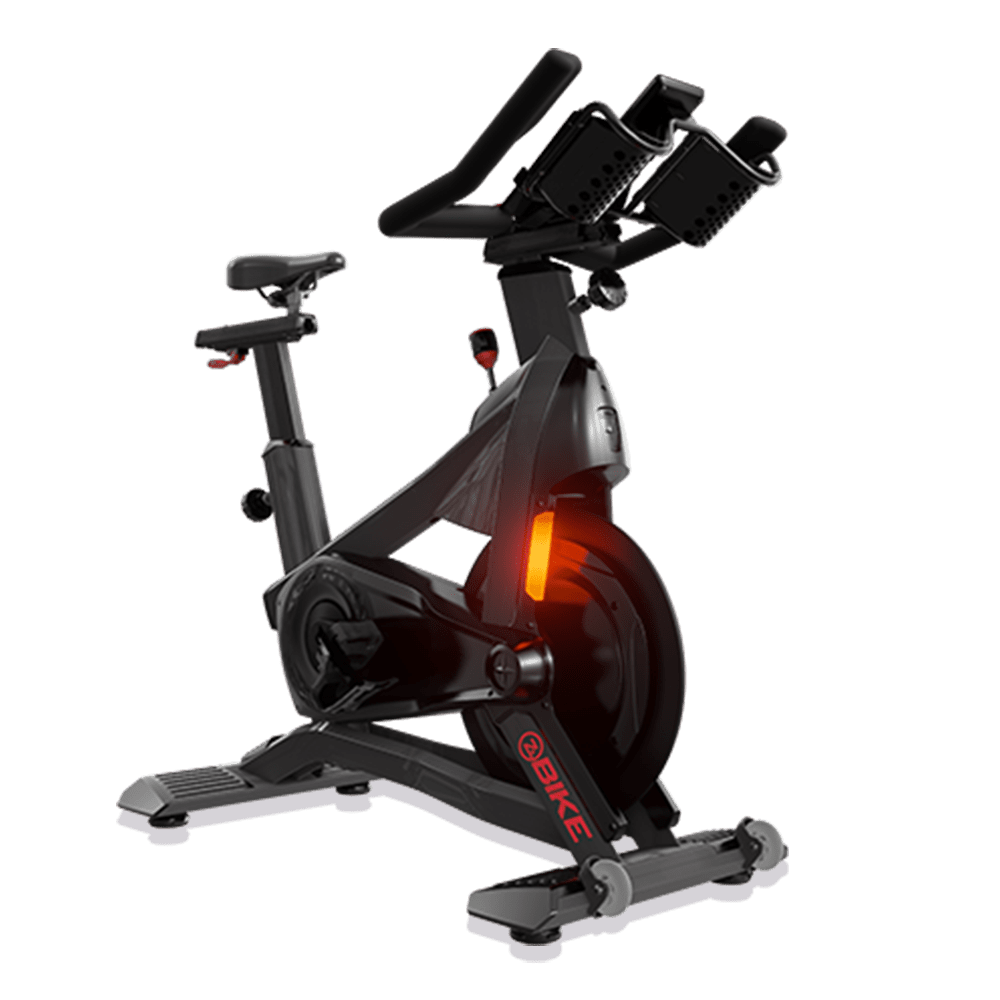

Schwinn Z Bike Indoor Cycle
Was | Now $3,699.00
Save : $400
About
Powered by personalized zones, accountability and an instructor who will push riders to be their best, the Schwinn Z Bike Indoor Cycle was designed for studios that focus on unifying their members with color. The configurable console allows for your instructor to design the class around FTP, Heart Rate, or Cadence for an experience that is never the same twice.
SUSTAINABILITY
Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!
In order to reduce the global demand for batteries, we have replaced our consoles requiring periodic changing of batteries with group cycles that generate power from pedaling. When not disposed of properly, batteries release harmful metals such as mercury, lead and cadmium into the environment. Look for ways to reduce your environmental impact with generator-powered electronics!
CUSTOMIZATION
We know what it takes to build an authentic, meaningful brand experience. Our customization program is the perfect way to leverage all that hard work into creating an amazing group cycle experience. Whether your goal is creating a tranquil place to unwind or a high-energy disco ball clad club scene, our consultative approach will get you there.
ZONE CONSOLE
Paired with 4iiii’s industry leading 3-dimensional strain gauge powermeter, the Z Console displays the most accurate power, direct from the member. It is the most reliable and authentic indicator for performance in cycling. The Schwinn Z Bike Indoor Cycle Z Console allows members to use FTP input, making zones personal.
Instructors will love uniting a class with color, allowing members at both ends of the fitness spectrum to ride side by side with the same intensity and sense of accomplishment. Schwinn’s broad-based approach reduces the traditional number of Power and Heart Rate training zones to 4 to align with ratings of perceived exertion, creating more accessible and attainable programming for instructors and members alike. Zone-colored LED lights next to the flywheel display each member’s intensity, encouraging the class to Ride As One.
OPENHUB CONSOLE CONNECTIVITY
Our goal is to provide the best technology solutions possible for our customers and their members. Partnering with 4iiii, we created the Zone Console to be an open platform with connectivity options like Bluetooth, NFC and ANT+. This feature allows owners and members to select and work with the Fitness Technology and Apps that meet their needs.
| Warranty | |
| FRAME: | 10 years (5 yrs corrosion) |
| MECHANICAL PARTS: | 2 years (drive mechanism, braking system, cranks) |
| LABOR: | 1 year |
| WEAR ITEMS: | 6 months (saddle, pedals) |
| Specifications | |
| PRODUCT WEIGHT: | 130 lbs (59 kg) |
| PRODUCT FOOTPRINT (LXWXH): | 42.5 in x 20.6 in (1076.5 mm x 525 mm) |
| FRAME MATERIAL: | Aluminum |
| FRAME FINISH: | Powder-coated |
| FRAME COLOR: | Quantum Silver |
| DRIVE SYSTEM/DRIVE TRAIN: | Smooth Poly V Zs 9-7510-QINTP0 Authentic, toothed carbon belt Za 9-7520-QINTP0 |
| RESISTANCE SYSTEM: | 6 Magnet Non-Contact Magnetic Resistance |
| Q-FACTOR: | 168 mm |
| HANDLE BAR: | Universal |
| SADDLE: | AC Saddle |
| FORE/AFT ADJUSTMENT SYSTEM: | Lever micro-adjustment |
| HEIGHT ADJUSTMENT SYSTEM: | Pop-Pin |
| FLYWHEEL: | Aluminum, thin profile |
| PEDALS: | Morse Taper Double Link - SPD and athletic shoe cage |
| USER HEIGHT RANGE: | 4'11 to 6'8 (150 cm to 203 cm) |
| MAX USER WEIGHT: | 300 lb (136 kg) |
| Z CONSOLE | |
| DISPLAY TYPE: | Color LCD |
| NFC TAP TO PAIR: | Yes |
| BLUETOOTH DATA TRACKING: | Yes |
| USB CONNECTIVITY: | CSV file ride data out / software updates in |
| 800/900 MHZ RECEIVER: | Yes |
| BLUETOOTH BROADCASTING AND RECEIVING: | Yes |
| ANT+ PROFILE: | FE-C, FIT, PWR, HR |
| POWER SUPPLY: | On-board generator |
| DEVICE CHARGING CAPABILITY: | Yes |
| POWER MEASUREMENT: | 4iiii® powermeter |
| POWER ACCURACY: | >99% |
| GEARS / RESISTANCE LEVELS: | 25 |
| OPENHUBTM CONSOLE CONNECTIVITY | |
| WIRELESS COMMUNICATION: | Bluetooth, ANT+, NFC |
| DEVICES THAT CONNECT: | 4iiii Powermeter – BLE, ANT+ |
| Zone Console – BLE, ANT+, NFC (NPE) | |
| TECHNOLOGY EXPERTS: | 4iiii Powermeter: Personal cycling apps – BLE, App-based group displays – BLE |
| Zone Console: Cardio tracking apps – BLE, WASP based group displays – ANT+, Personal watches – NFC | |
| COMPATIBLE CONSOLES | |
| ZONE CONSOLE: | Included |
| COMPATIBLE ACCESSORIES AND UPGRADES | |
| PEDALS: | Triple Link KEO-compatible, Morse Taper 718-5869 |
| Triple Link Delta-compatible, Morse Taper 740-8689 | |
| BIKE NUMBERING TAGS: | 740-9639 |
| DUMBBELL HOLDERS: | 700-0504-XX |
| PHONE HOLDER: | 740-9596-KT |
| POWERMETER CRANK: | Included |
| CUSTOMIZATION OPTIONS | |
| FRAME COLORS: | Black Grey 83, Zinc Yellow 32, Wrinkle Black 26, Ultramarine Blue 73, Traffic Grey 57, Speckled Red 82, Silver 13, Quantum Silver 79, Purple 49, Powerhouse Granite 62, Peel White 61, Pearl Night Blue 80, Pastel Orange 77, Moss Green 56, Black 60, Karminrot 30, Eagle White 25, Candy Red 27, Candy Blue 65 |
| BRANDING (DECALS): | Head tube, down tube, forks, seat tube, base tube, chain guard |
| PEDALS: | Morse Taper Double Link, Morse Taper Schwinn Triple Link Delta-compatible, Morse Taper Schwinn Triple Link Keo-compatible |
| SADDLES: | AC, SC, Road, Comfort |
| LED LIGHTS: | Included in Z Console: Blue, Cyan, Green, Orange, Purple, Red, Yellow |
FEATURES
Schwinn Z Bike Indoor Cycle Key Features:
- Smooth Poly V Drive Train on Zs 7510
- Authentic, Toothed Carbon Belt on Za 7520
- 4iiii crank arm powermeter delivers accurate strain gauge power feedback to help riders train harder and smarter
- 6 Magnet Non-Contact Magnetic Resistance System
- Morse Taper pedals and bottom bracket for increased durability and reliability
- Frame Finish – Powder Coated Aluminum
- User Height Range: 4’11 to 6’8 (150 CM to 203 CM)
- Max User Weight: 300 LBS (136 KG)
- Zone Console Included
